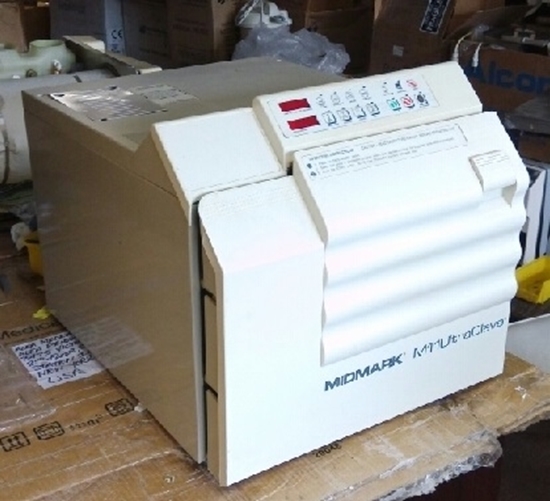

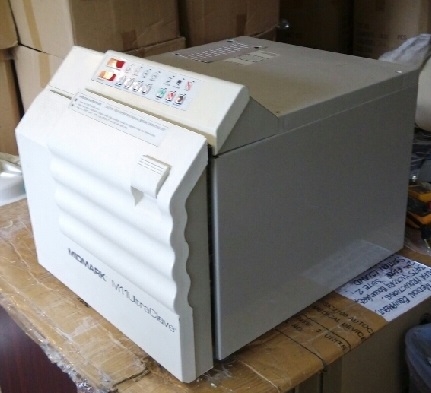

Midmark M11 Steam Sterilizer Refurbished

Midmark M11 Steam Sterilizer Refurbished Autoclave

SPECIFICATIONS
Physical Dimensions:
Overall Length................................. 48.3 cm (19 in)
Overall Width................................... 38.1 cm (15 in)
Overall Height ................................. 40.6 cm (16 in)
Counter Area................................... 41.9 cm x 35.6 cm (16.5 x 14 in)
Chamber ......................................... 22.9 cm Diameter x 38.1 cm depth
(9 in Diameter x 15 in depth)
Large Trays (2)................................ 30.5 cm x 20.3 cm x 2.5 cm
(12 in x 8 in x 1 in)
Small Trays (2) ................................ 30.5 cm x 14.0 cm x 2.5 cm
(12 in x 5.5 in x 1 in)
Weight:
Empty Reservoir.............................. 32 Kgs (70 lbs)
With Shipping Carton ...................... 35 kgs (78 lbs)
Water Reservoir Capacity............. Approximately 3.3 Liters to Full Mark
(0.88 gallons)
Electrical Requirements:
NOTE: A separate (dedicated) circuit is recommended for this sterilizer. The
sterilizer should not be connected into an electrical circuit with other appliances
or equipment unless the circuit is rated for the additional load.
100 VAC, 50/60 Hz Model ............... 20 AMP Circuit, Single Phase
120 VAC, 60 Hz Model.................... 15 AMP Circuit, Single Phase
220-240 VAC, 50/60 Hz Model........ 10 AMP Circuit, Single Phase
Maximum Power Consumption:
100 VAC, 50/60 Hz Model ............... 1425 Watts, 14.2 A @ 100V
120 VAC, 60 Hz Model.................... 1425 Watts, 11.9 A @ 120 V
220-240 VAC, 50/60 Hz Model........ 1500 Watts, 6.3 A @ 240 V
Chamber Pressure at
132°C (270°F) .................................215 kPa (31 psi)
Safety Valve Setting ......................276 kPa (40 psi)
Certifications .................................ISO-9001 Certified
