MODEL |
HVA-85
|
HVA-110
|
TEMPERATURE |
Operating Range |
105ºC to 135ºC
|
Display Range |
137ºC
|
Agar Warming Range |
After sterilization, agar can be maintained from 45ºC to 60ºC (programmable) to prevent coagulation for up to 20 hours.
|
GAUGE PRESSURE |
Maximum Allowable |
38 psi (0.26MPa)
|
Operating Range |
3 to 30 psi (0.021 to 0.206MPa)
|
TIMER |
Sterilization |
1 to 250 minutes
|
DIMENSIONS |
Overall (W x D x H) |
26.0"" x 25.6" x 39.4" (66 cm x 65 cm x 100 cm)
|
26.0" x 25.6" x 46.4" in (66 cm x 65 cm x 118cm)
|
Chamber (Diameter x Height) |
85 liters 16.5" x 24.2" (42.0 cm x 61.5 cm)
|
110 liters 16.5" x 31.3" (42.0 cm x 79.5 cm)
|
SAFETY DEVICES |
Dual-sensing lid interlock, over-pressure power cutoff, over-temperature power cutoff, low-water power cutoff, mechanical pressure relief valve, microprocessor-controlled pressure relief valve, lid-closure detector, over-current detector and circuit breaker
|
PROGRAMS |
1. For agar |
Heating -> Sterilization -> Auto steam exhaust or ambient cooling (programmable) -> Warming -> Completion
|
2. For liquids |
Heating -> Sterilization -> Auto steam exhaust or ambient cooling (programmable) -> Completion
|
3. For solids |
Heating -> Sterilization -> Auto exhaust (fast) -> Completion
|
ACCESSORIES |
Stainless steel |

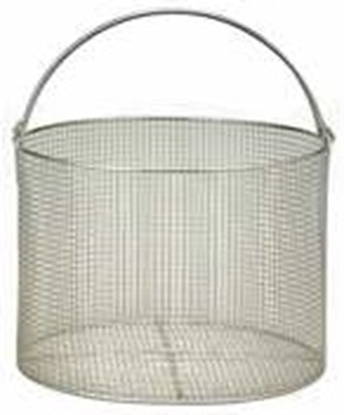

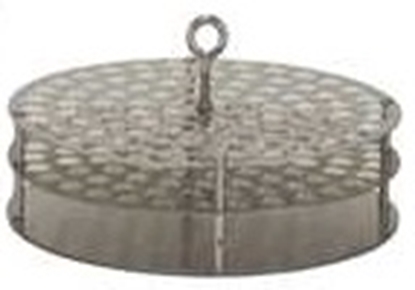

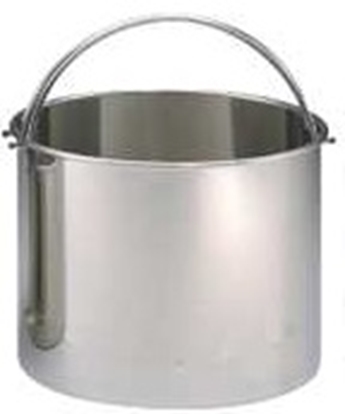

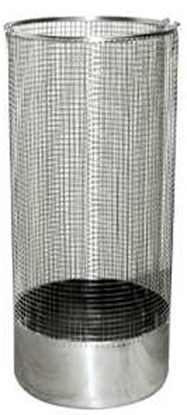

Mesh wire baskets, buckets (pails), and round test tube racks
|
Factory or field installed |
Data logger
|
POWER |
Source |
208V / 220V / 240V, 50 / 60 Hz, single phase
|
Consumption |
3000 watts (3000VA)
|
4000 watts (4000VA)
|
SHIPPING WEIGHT |
282 lb (128 kg)
|
308 lb (140 kg)
|
